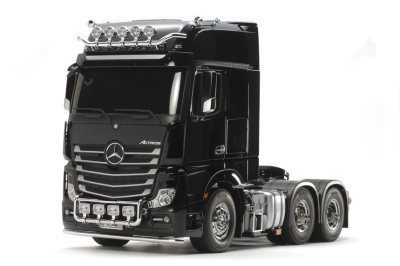

Tamiya Mercedes-Benz Actros 3363 6x4 GigaSpace

Tamiya Mercedes-Benz Actros 3363 6x4 GigaSpace
Part No:
TAM56348
Brand:
Tamiya

Price: £500.00 incl. VAT
Approx: €550.00 / US$537.50




TAMIYA RC KIT OFFER. Buy selected Tamiya RC Kits and get a 15% discount off the price shown.

The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model's highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.

Specifications
Scale 1:14
Length: 458mm, Width: 198mm, Wheelbase 305mm

The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model's highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.

Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg
Wheelbase: 237+103mm
Tread: 155mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°
Toe Angle: 0°(Front & Rear)
Dampers: Aluminum Dummy Dampers (Front & Rear)
Drivetrain: Rear Double Axle Drive
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel diff
Motor: Type 540
Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)

Important Radio Information

Please be advised when choosing a radio for your Tamiya Semi, you need to figure out what your final goal will be. Your choice is between an Analog or Digital trimmed 4ch radio.

If you plan on using your semi without an MFU (Multi-Function Unit), you can use either type radio.
If you even think you might use an Tamiya MFU on your semi, please only use a Analog radio.

Digital trim radios "WILL NOT" work with Tamiya MFU units.
Q. How Can I tell if my radio is Analog or digital trim?
Analog - Radio Trims slide from one end to the other
Digital - Radio Trims are only switches and click in either direction, No Sliding
