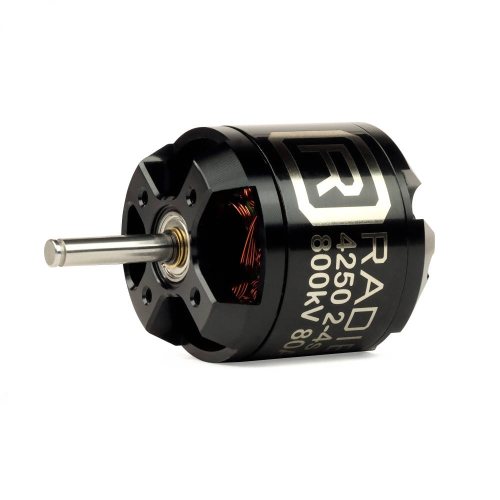

All Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It’s a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
Specification:
Watts (W): 220
Rec’d ESC (A): 20
Rec’d LiPo (cells): 2-3S
Shaft Dia. (mm): 3.0
Bullet Connector (mm): 3.5
Weight (g): 45
Prop Size / 2S (in): 10x6 / 11x6
Prop Size / 3S (in): 9x6 / 10x5
14 Pole 12 slot hi-torque rotor.
CNC-machined 6061-T6 billet heatsink can.
High purity, maximum efficiency copper windings.
High RPM ABEC5 oversized bearings.
Precision balanced rotor offers smooth, reliable performance.
Super-thin (0.2mm) stator laminations.
Precision engineered for maximum energy conversion.
What's in the Box
1x Radient high-torque brushless motor.
1x Shaft prop drive.
1x Can prop drive.
1x X-type mounting bracket.
4x Short countersunk screws for attaching the bracket to the motor.
4x Long cap head screws for can prop drive installation.
