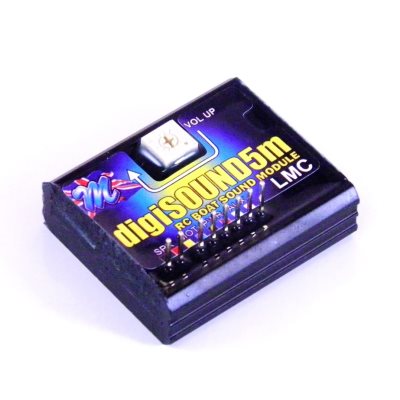

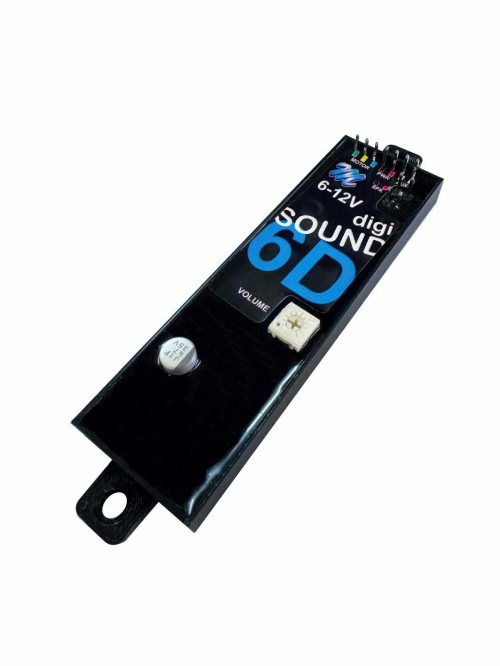

The digiSOUND6D-LMC is the new, improved version of our original RC boat sound module, the digiSOUND5m.
It's a 100% waterproof, plug n play sound module designed to take the hassle out of giving your model a realistic sound! The sound module requires NO programming or set up, it comes with a realistic sound pre-installed leaving just the installation to complete before you can get under way! The unit comes complete with built in amplifier, wiring loom and even a 75.0mm diameter waterproof speaker!
You simply install the unit in your model and go! There is no complicated PC interface to deal with or complicated set up, you REALLY do just have to plug it in and go!!! Add this to the legendary Mtroniks waterproof construction and you really don't need to look any further!
This latest version of the digiSOUND comes with a pre installed, large multi-cylinder engine sound, this comes with a start up and shutdown routine and auxilliary horn for added realism, when used with the optional 'microswitcher' unit. The digiSound is the last piece of the jigsaw for adding realism to your RC model boat.
The 6D version of the sound module has improved motor pick up meaning the sound is more fluid and tracks the motor movement much more closely and accurately. It also has much improved performance when being used with brushless motors.
Notes on speaker performance.
The 75.0mm speaker included with your module is waterproof so it is safe to use outside, you should always install your speaker into a suitable enclosure (the upper side of your hull) to ensure the best power handling, frequency and bass response.
Product Type Sound System
Model Type Model Boat
Operating Voltage Maximum 12.0 Volts
Battery Type NiCAD/NiMH/Lead Acid/LiPo
Lipo safe Yes
Digital sound 16-Bit
Engine sound Large multi cylinder air start diesel
Speakers included 1
Speaker size 75.0mm diameter
Speaker Impedance 4 to 8 ohms
Motor Type Brushed/Brushless
Wiring loom included Yes
Power Output 4W
Waterproof Yes
Dimensions L100.0mm x W25.0mm x H10.0mm
Weight 18.0g
Product Type Sound System
Model Type Model Boat
Operating Voltage Maximum 12.0 Volts
Battery Type NiCAD/NiMH/Lead Acid/LiPo
Lipo safe Yes
Digital sound 16-Bit
Engine sound Large Multi Cylinder Air Start Diesel
Speakers included 1
Speaker size 75.0mm diameter
Speaker Impedance 4 to 8 ohms
Motor Type Brushed/Brushless
Wiring loom included Yes
Power Output 4W
Waterproof Yes
Dimensions L40,0mm x W35.0mm x H15.0mm
Weight 30.0g
