Model Boat Magazine Plans: Submarines

Cornwall Model Boats | Model Boat & Ship Plans | Model Boat Magazine Plans |  Submarines

Model Boat Magazine Plans

Drawings and plan sets for a variety of Models
Please Note: These plans are printed to order and take approximately 7 days for us to obtain.

Model Boat Magazine Charlie Class Submarine (Model Submarine Plan)

Charlie Class Submarine (Model Submarine Plan)

This model, 40in long, uses a 4in diameter PVC tube for the main hull, with GRP bow, stern, and sail. Drawing shows motor and R/C and is a useful guide for similar advanced submarine models.
Part No: MM1210

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Hollandi (Model Submarine Plan)

Hollandi (Model Submarine Plan)

Very detailed external and internal drawings of the Navy's first submarine drawn at 25.5in length. The drawings are very detailed and annotated and make interesting study in addition to their value to a modeller. No model construction details are included.
Part No: MM1378

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Molch & Hecht (Model Submarine Plan)

Molch & Hecht (Model Submarine Plan)

Drawings for two German miniature submarines and working torpedoes. Two sheet plan show some model construction techniques. Hull of submarine from PVC pipe. Overall length is approximately 40in For R/C, and electric power.
Part No: BM1392

Price: 17.50 (Including VAT at 20%)
Euros: 19.95 (Inc VAT) / US Dollars: US$20.41 (Tax Free)


Quantity:

Model Boat Magazine Nautilus (Model Submarine Plan)

Nautilus (Model Submarine Plan)

A novel rubber-powered submarine with automatic diving gear. Overall length 28in., beam 1.5in Simple construction and very detailed drawing.
Part No: MM285

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

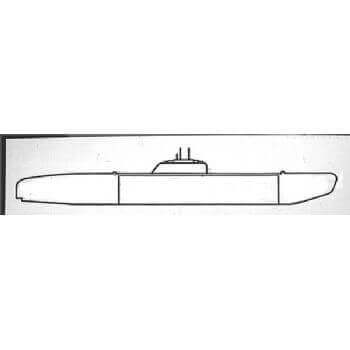

Model Boat Magazine Resolution class and Type XXIC U-boat (Model Submarine Plan)

Resolution class and Type XXIC U-boat (Model Submarine Plan)

Resolution class and Type XXIC U-boat. A Resolution class submarine at 39in., and a Type XXIC U-boat at 38in., these drawings are a guide to construction rather than completely detailed plans. Both boats use basically 3in PVC tube for hulls with glass fibre ends and superstructures and are electric powered with R/C. For more experienced builders.
Part No: MM1155

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Sardine (Model Submarine Plan)

Sardine (Model Submarine Plan)

Tinplate on a sturdy wooden frame makes this a submarine of very simple construction for 0.5 - 1.5cc engines. Overall length 48in., beam 5-.75in., automatic resurfacing, etc., using schnorkel tube when submerged.
Part No: MM485

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

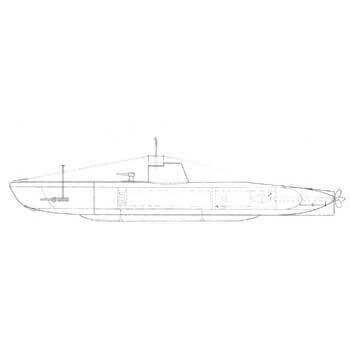

Model Boat Magazine Sprat (Model Submarine Plan)

Sprat (Model Submarine Plan)

Sprat Submarine Plan
Part No: MM624

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Submarines F & B1 (Model Submarine Plan)

Submarines F & B1 (Model Submarine Plan)

Russian F class and a Japanese B1 type superstructure on a common hull form, length 53in Drawing includes sections, but relatively little other model construction details.
Part No: MM1248

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Submersible (Model Submarine Plan)

Submersible (Model Submarine Plan)

A 15in "deep sea research" type submersible 6-.75in beam for two to six function R/C, built round a moulded styrene, the plan consists of photostat copies of the original drawing and accompanying article.
Part No: BM1426

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine HMS Tabard (Model Submarine Plan)

HMS Tabard (Model Submarine Plan)

A British T Class submarine at 1:64 scale, model length 51in by 5in beam. The single sheet plan includes sections, plan and side elevation. No model construction details are included.
Part No: MM1396

Price: 13.00 (Including VAT at 20%)
Euros: 14.82 (Inc VAT) / US Dollars: US$15.16 (Tax Free)


Quantity:

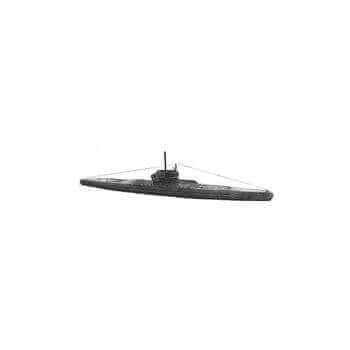

Model Boat Magazine Type IX U Boat (Model Submarine Plan)

Type IX U Boat (Model Submarine Plan)

Type Ix U Boat. A scale U-boat for twin electric motors or equivalent with or without R/C. Length 45in., beam 4in., balsa or obechi bread-and-butter construction.
Part No: MM471

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine Type XVII U-Boat (Model Submarine Plan)

Type XVII U-Boat (Model Submarine Plan)

RC WW2 Submarine
GLYNN GUEST'S plan for a semi- scale dynamic diving R/C Submarine.
Part No: MAGM2030

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:

Model Boat Magazine USS Nautilus (Model Submarine Plan)

USS Nautilus (Model Submarine Plan)

The first nuclear-powered submarine, 300ft. L.O.A. and 28ft. beam launched in 1954. Scale drawings of the full-sized vessel to a length of 36in., beam 3in No model construction details.
Part No: MM433

Price: 12.50 (Including VAT at 20%)
Euros: 14.25 (Inc VAT) / US Dollars: US$14.59 (Tax Free)


Quantity:
