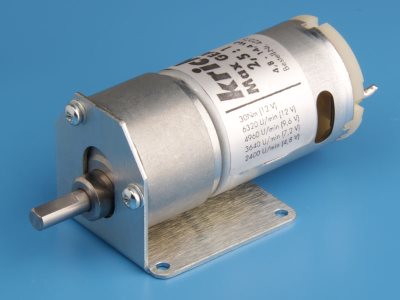

Krick Max Gear 540 Type Motor 2.5:1

Part No:
K42275

Price: 40.80 (Including VAT at 20%)
Euros: 46.10(Inc VAT) / US Dollars: US$44.20(Tax Free)

Krick Max Gear 540 typemotor 2.5:1
MAX GEAR is a smooth running and low power consumption. Universal use for many applications. As marine propulsion or a slow-rotating motor for special functions - MAX GEAR motors are the solution. The gearbox is of metal construction with metal gears

Technical data
Gear 2.5: 1
Weight 270 g

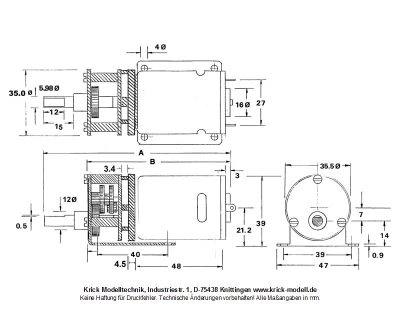

Dimensions 87mm x 37mm dia excluding the mount
Output shaft 6mm plain
Voltage range 4.8-14.4 V
Current consumption at 12 V no load for approx. 0.5 A
Torque 30 N/CM at 12v

Output speed at 4.8v 2400 rpm
Output speed at 7.2v 3640 rpm
Output speed at 9.6v 4960 rpm
Output speed at 12.0v 6320 rpm

Krick Max Gear 540 typemotor 2.5:1
MAX GEAR is a smooth running and low power consumption. Universal use for many applications. As marine propulsion or a slow-rotating motor for special functions - MAX GEAR motors are the solution. The gearbox is of metal construction with metal gears

Technical data

Gear 2.5: 1
Weight 270 g
Dimensions 87mm x 37mm dia excluding the mount
Output shaft 6mm plain
Voltage range 4.8-14.4 V
Current consumption at 12 V no load for approx. 0.5 A
Torque 30 N/CM at 12v

Output speed at 4.8v 2400 rpm
Output speed at 7.2v 3640 rpm
Output speed at 9.6v 4960 rpm
Output speed at 12.0v 6320 rpm
